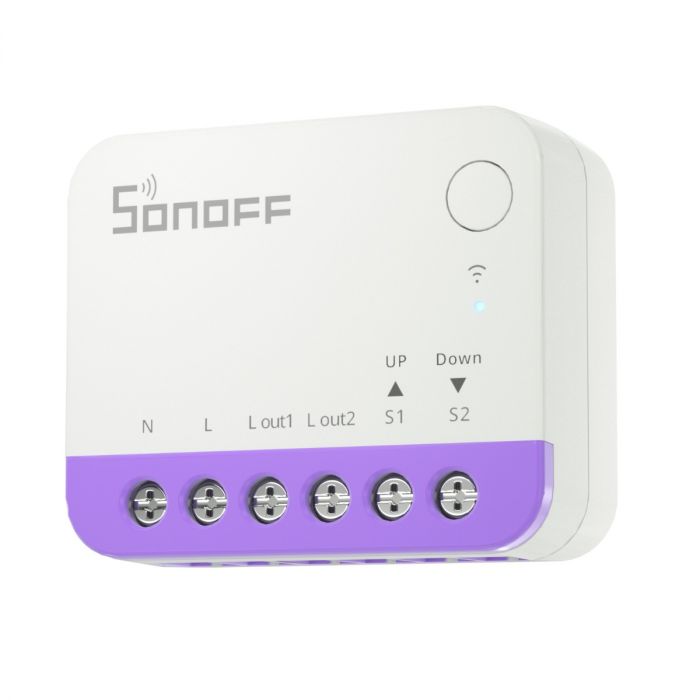

SONOFF MINI-RBS – Smart Roller Shutter Switch

Name: SONOFF MINI-RBS – Smart Roller Shutter Switch
Brand: SONOFF
SKU: SNFSWIMINIRBSW0200
Availability: InStock

Original price was: R 369,00.Current price is: R 329,00.

SKU: SNFSWIMINIRBSW0200 Category: Smart Switch Tags: 1a,, 4-wire,, 5-wire,, alexa,, apple-home,, awning,, blind,, calibration,, compact, Curtain,, eu-standard,, ewelink-remote,, google-home,, home-assistant,, homekit,, junction-box,, matter,, mini-rbs,, motor,, percentage-control,, r5,, Resellerpricing,, roller-shutter,, scheduling,, siri,, smart-switch,, smartthings,, sonoff,, south-africa,, voice-control,, wifi Brand: SONOFF

🪟 SONOFF MINI-RBS — Smart Roller Shutter Switch (Matter + WiFi)

Turn any motorised roller blind, shutter, or awning into a smart curtain. The MINI-RBS delivers precise percentage positioning (0–100%), scheduled open/close, auto-calibration, and Matter compatibility for Apple Home, Google Home, Alexa, SmartThings, and Home Assistant — all in an ultra-compact module that fits inside a standard junction box. MPN: MINI-RBS.

🚚

Free Delivery

Orders over R2,500

🇿🇦

Local Stock

Ships from Gauteng

🛡️

1 Year Warranty

Manufacturer

🏠

Matter

Apple · Google · Alexa

⚡ Key Features

Precise Percentage Positioning (0–100%) — open your blinds to exactly the right level for comfort, privacy, and light control
Matter Compatible — native integration with Apple Home/Siri, Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant
WiFi 2.4 GHz + eWeLink App — remote control from anywhere, smart scenes, schedules, and device sharing
Scheduled Open/Close — automate blinds based on time of day, sunrise/sunset, or daily routines
Auto-Calibration (“Extra Time”) — compensates for motor drift over time, maintaining accurate positioning and extending motor life
Ultra-Compact Design — 33 × 39.5 × 16.8 mm fits inside EU standard junction boxes (60 mm / 80 mm)
Supports 4-Wire & 5-Wire AC Motors — compatible with most standard roller shutter/blind motors up to 1A
External Switch Support — connect existing three-position rocker or momentary switches (S1/S2 terminals)
eWeLink-Remote Gateway — built-in Bluetooth gateway supports wireless SONOFF R5 scene controller (100 m local control)
Voice Control — “Hey Siri, open the blinds to 50%” / “Alexa, close the shutters”
2-Minute Safety Timeout — motor automatically stops after 2 minutes of continuous operation to prevent overheating

🏠 Perfect For

🪟

Roller Blinds & Shutters

Upgrade existing motorised blinds to smart control. Precise percentage positioning. Schedule to open with sunrise and close at sunset.

🌅

Wake-Up Mode

Set blinds to open to 30% in the morning — gentle natural light wakes you without harsh alarm clocks. Fully automated via schedule.

🏢

Office & Conference Rooms

Control blinds via voice or app. Reduce glare on screens by setting precise percentage. Schedule closed during meetings.

🎬

Home Theatre & Projectors

Close blinds for movie time. Open at the end of the film. Works with motorised projector screens using the same motor types.

🔧 Motor Compatibility

The MINI-RBS works with 4-wire AC motors (neutral, live, forward, reverse) and 5-wire AC motors (+ ground). Maximum motor current is 1A. This covers most standard tubular roller shutter motors. If your motor’s forward and reverse wires are swapped, you can correct the direction in software — no rewiring needed.

⚠️ Professional installation recommended. This device connects to mains wiring (100–240V AC) and must be installed by a qualified electrician. Do not touch terminals while powered on. An MCB or RCBO rated at 1A should be installed upstream.

📋 Technical Specifications

Product	SONOFF MINI-RBS Smart Roller Shutter Switch
MPN / Model	MINI-RBS
Type	WiFi + Matter Smart Roller Shutter/Curtain Controller
Input	AC 100–240V, 50/60 Hz
Max Motor Load	1A
Compatible Motors	4-wire AC (N, L, Fwd, Rev) · 5-wire AC (+ Ground)
Position Control	0–100% percentage adjustment
Calibration	Automatic + Manual + “Extra Time” drift correction
External Switch	Three-position rocker · Momentary push button (S1/S2)
Safety	2-minute motor timeout (auto-stop)
WiFi	IEEE 802.11 b/g/n 2.4 GHz
Matter	Yes — Apple Home, Google Home, Alexa, SmartThings, Home Assistant
eWeLink-Remote	Built-in Bluetooth gateway (R5, S-MATE2 compatible)
Dimensions	33 × 39.5 × 16.8 mm
Junction Box	EU standard 60/80 mm (min depth 30 mm with ERBS enclosure)
App	eWeLink (iOS & Android) + Matter-compatible apps
Voice Control	Apple Siri · Amazon Alexa · Google Assistant
Certifications	CE
Warranty	1 Year Manufacturer Warranty

❓ Frequently Asked Questions

Will it work with my roller shutter motor?

If your motor is a 4-wire or 5-wire AC motor drawing up to 1A, yes. This covers most standard tubular roller shutter motors. Check your motor’s datasheet for current draw — if it’s under 1A, you’re good to go.

Does it support Apple Home / HomeKit?

Yes. The MINI-RBS supports Matter, which means it works natively with Apple Home (Siri), Google Home, Amazon Alexa, Samsung SmartThings, and Home Assistant — all from the same device.

Can I still use my wall switch?

Yes. Connect your existing three-position rocker or momentary switch to the S1/S2 terminals. The physical switch works alongside app and voice control.

How accurate is the percentage positioning?

After calibration (automatic or manual), positioning is accurate to within a few percent. The “Extra Time” feature automatically corrects for motor drift over long-term use, keeping positioning precise.

Can the motor run for more than 2 minutes?

No. For safety, the MINI-RBS automatically stops the motor after 2 minutes of continuous operation to prevent overheating. This is a built-in protection feature.

Does it work with Home Assistant?

Yes — via Matter integration, eWeLink HACS integration, or SonoffLAN. All support position control (0–100%). Matter provides the most standardised integration.

What is the ERBS enclosure?

The ERBS (Roller Shutter Wall Switch Enclosure) is a dedicated wall-mount accessory that houses the MINI-RBS with a built-in physical switch. Available for pre-order. Requires a junction box with at least 30 mm depth.

Can I use it with the R5 scene controller?

Yes. The MINI-RBS has a built-in eWeLink-Remote Bluetooth gateway. Pair it with a wireless SONOFF R5 scene controller for local control up to 100 m — more stable than RF remote control.

🤝 Need Help? We’re Here for You!

📞

Call Us

Jesse: 071 678 8719
Jason: 084 505 7481

🏢

Visit Us

8 Wildebraam Street
Weltevreden Park, Roodepoort
Gauteng, 1709

📧

Email

info@eiferer.co.za

Smart Blinds. Precise Control. Every Platform.

Matter-compatible roller shutter switch — open to exactly the percentage you want.
