🔀 Two Circuits, One Compact Module
Zigbee 3.0 dual-channel smart switch. Control two lights or appliances independently from a single module hidden behind your wall switch. Acts as a Zigbee router to strengthen your mesh network.
✨ What Makes This Special
- Dual-channel control — two independent circuits from one module (10A per gang, 16A total)
- Zigbee 3.0 — works with Home Assistant, eWeLink, Alexa & Google
- Zigbee router with Turbo mode — boosts signal and extends mesh coverage
- External switch support — connect existing wall switches (rocker or push button)
- Detach relay mode — physical switches and smart control work independently
- Stepper function — one button cycles through multiple scenes for both channels
- Power-on state — choose on, off, or last state after power returns
- Compact design — fits behind wall switches in standard boxes (min 60mm depth)
- Overheat & surge protection — built-in safety for daily use
- 1 Year Warranty — full manufacturer warranty included
🏆 Why Buy from Eiferer?
Local SA Stock
Ships from Gauteng
Best Prices
Competitive guaranteed
Expert Support
Call Jesse: 071 678 8719
Fast Shipping
Nationwide delivery
📡 You’ll Need a Zigbee Hub
The MINI-ZB2GS is a Zigbee 3.0 device — it doesn’t connect directly to WiFi. You’ll need a Zigbee coordinator or hub to pair and control it.
SONOFF Dongle Max
Next-gen Zigbee/Thread coordinator. EFR32MG24, PoE + Ethernet + WiFi + USB. Web console, dual 5dBi antennas. The ultimate Home Assistant coordinator.
View Product →
SONOFF Zigbee Bridge-P
Control via the eWeLink app. 128 Zigbee sub-devices, dual-protocol (Zigbee + WiFi), smart alarm modes.
View Product →
SONOFF Dongle Lite MG21
Compact EFR32MG21 USB dongle. 65% smaller than ZBDongle-E. Home Assistant, Zigbee2MQTT, openHAB. Includes USB extension cable.
View Product →
Home Assistant Mini Server
Run Home Assistant locally with a USB Zigbee dongle. 3,000+ integrations, total privacy, advanced automations.
View Product →
💡 What Can You Control?
Two independent on/off relay channels — control any combination of two circuits up to 16A total.
Two Light Circuits
Main light + ambient light in one room
Light + Fan
Control each independently from one module
Two Rooms
Adjacent rooms sharing one wall box
Scene Triggers
Use Stepper to cycle scenes with one button
🎯 Smart Features You’ll Actually Use
Dual Independent Channels
Each channel operates independently — turn on the living room light while the fan stays off. 10A per gang, 16A total across both channels.
Zigbee Router + Turbo Mode
Every MINI-ZB2GS strengthens your Zigbee mesh network. Turbo mode boosts signal for more stable, wider-reaching device communication.
Detach Relay Mode
Separate physical switches from relay control. Use wall switches as smart scene triggers while keeping smart bulbs powered and online.
Stepper Function
One button, multiple scenes. Each press cycles through customisable actions for both channels — e.g. all on → channel 1 only → all off.
Schedules & Automations
Set timers, countdowns, and smart scenes via eWeLink or Home Assistant. Automate based on time, sensors, or other Zigbee devices.
Voice Control
Works with Alexa and Google Assistant via your Zigbee hub. Also supports Siri via Matter Bridge (ZBBridge-U/eWeLink CUBE).
🏡 Home Assistant Integration
🔗 Integration Methods
ZHA (Zigbee Home Automation) — built into Home Assistant, auto-discovery, both channels appear as separate entities.
Zigbee2MQTT — advanced features, MQTT broker, full configuration of both channels and Stepper function.
eWeLink app — pair via ZB Bridge-P for app and voice control, smart scenes, and scheduling.
Home Assistant Mini Server
The ideal companion for your MINI-ZB2GS. Run Home Assistant locally with a USB Zigbee dongle for full local control over both channels.
- Home Assistant pre-installed — ready out of the box
- Add a Zigbee dongle — pairs directly with MINI-ZB2GS
- 3,000+ integrations — connect everything in your home
- 100% local — no cloud, no subscriptions
🔧 Installation
🛠️ DIY Installation
What you’ll need:
- Basic electrical knowledge and experience
- Neutral wire in your wall box (required)
- Mounting box with minimum 60mm depth
- Zigbee hub/coordinator already set up
- Standard tools: screwdriver & wire strippers
- 15-20 minutes installation time
The MINI-ZB2GS fits behind your existing wall switch, completely hidden. Connect two separate load circuits to L1-out and L2-out for independent control.
🔗 Similar Zigbee Mini Products
More compact Zigbee devices that pair with the same hub.
SONOFF ZBMINIR2
Single-channel version. Same Zigbee 3.0 mesh routing in a smaller form factor. 10A load.
View Product →
SONOFF ZBMINI-L2
Single-channel Zigbee switch that works without a neutral wire. Perfect for older SA homes.
View Product →
SONOFF MINI-ZBDIM
Need dimming? Same Zigbee protocol with trailing-edge dimming for LEDs (200VA). Power monitoring built-in.
View Product →
SONOFF ZBM5
Full wall switch replacement. Zigbee 3.0, works with or without neutral wire. Detach relay mode.
View Product →
📋 Technical Specifications

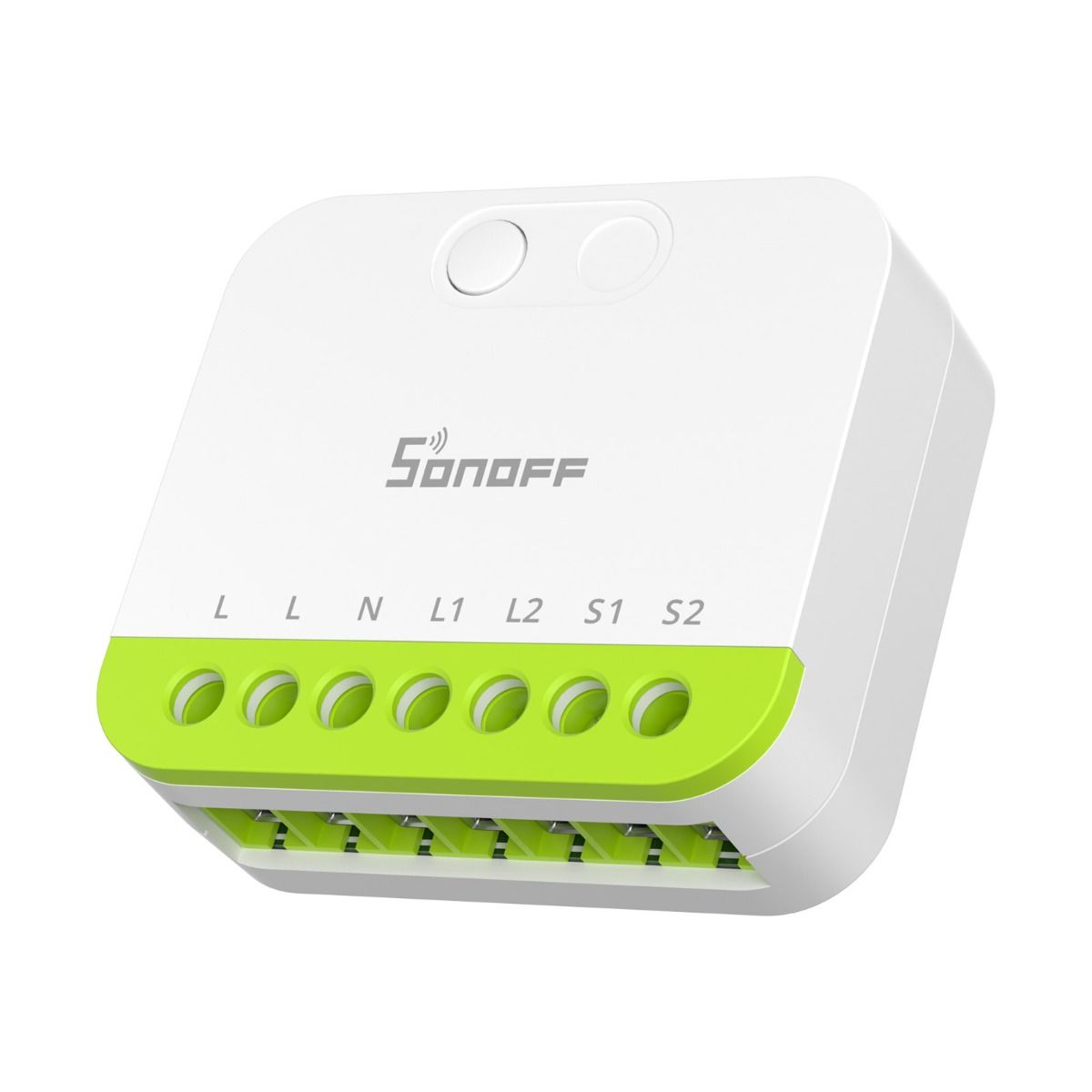

| Model / MPN | MINI-ZB2GS |
| Product Name | SONOFF MINI DUO 2-Gang Zigbee Smart Switch |
| MCU | EFR32MG21 (Silicon Labs) |
| Protocol | Zigbee 3.0 (IEEE 802.15.4, 2.4 GHz) |
| Zigbee Role | Router (extends mesh network) + Turbo Mode |
| Input Voltage | 110-240V AC, 50/60Hz |
| Channels | 2 independent (dual-load) |
| Max Current per Gang | 10A (resistive) |
| Max Total Current | 16A (combined both channels) |
| External Switches | Rocker & push button (S1 & S2) |
| Special Modes | Detach relay, Stepper function, power-on state configurable |
| Safety Features | Overheat protection, surge protection |
| Compatible Platforms | Home Assistant (ZHA / Zigbee2MQTT), eWeLink, Alexa, Google, IFTTT |
| Compatible Hubs | Dongle Max, ZBDongle-P/E/LMG21, ZB Bridge-P, NSPanel Pro, iHost |
| Neutral Wire | Required |
| Mounting | Standard wall boxes (min 60mm depth) |
| Dimensions | 45 × 39 × 18 mm (approx.) |
| Warranty | 1 Year Manufacturer Warranty |
❓ Frequently Asked Questions
Does this work with South African power (220-240V)?
Do I need a Zigbee hub?
Does it need a neutral wire?
Can I control the two channels independently?
What is the Stepper function?
Can I use it for curtains or blinds?
Does it work with Home Assistant?
Does it work during load shedding?
What’s the difference between this and the MINI-2GS (WiFi/Matter)?
What’s included in the box?
📦 What’s in the Box
📝 Note: Wall switches, faceplates, mounting boxes, and Zigbee hub/coordinator are sold separately. Min 60mm wall box depth required.
